PRE-TEST	POST-TEST	?CHANGE
A	3350	3350	0
B	838	838	0
C	1295	1295	0
D	5487	5487	0
E	202	202	0
F*	400 / 400	400	0
G*	367 / 365	357	-8
H*	363 / 361	358	-3
I*	400 / 398	395	-3
J*	421 / 420	431	11
K*	505 / 504	503	-1
L	183	183	0
M*	565 / 563	553	-10
N	762	768	6
O	764	710	-54
P	465	428	-37
Q	525	484	-41

* These measurements were taken in the "as delivered" and in the "as tested" configuration, respectively.

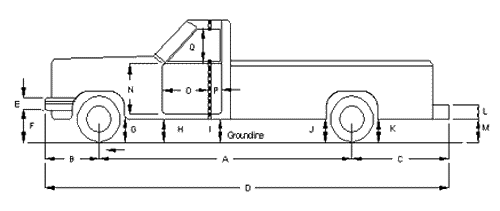

Figure 1. Vehicle physical parameters in mm.
