MEASUREMENT (mm)	DRIVER SIDH3 ID# 28
HH	500
HW	713
HZ	193
NR	455
CD	573
CS	259
KDL(KDA°)	180(22°)
KDR(KDA°)	169(21°)
PA°	18.7°
PHX	298
PHZ	26
PHY	222

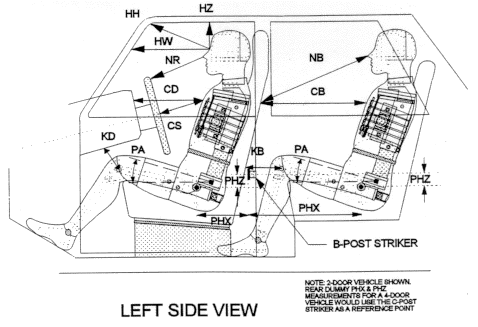

Figure 3. SIDH3 longitudinal clearance and position measurements.
